Diffraction project datasets SP16880B_4iyk

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 63
Download all images (1.5 GB)

PDB website for 4IYK
PDB validation report for 4IYK

doi:10.18430/M34IYK

Project details

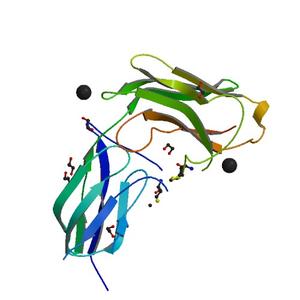

Title Crystal structure of a putative carbohydrate binding protein (BACUNI_04699) from Bacteroides uniformis ATCC 8492 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 84.80 x 84.80 x 61.36
Unit cell angles [°] 90.0, 90.0, 120.0

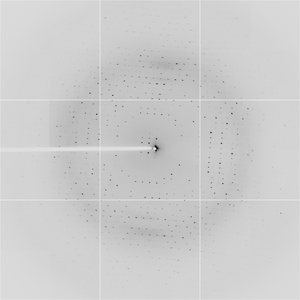

Dataset 189701_1_E1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] -84.0
Wavelength [Å] 0.97937
Experiment Date 2012-11-21
Equipment 8.2.2 at ALS (Advanced Light Source)

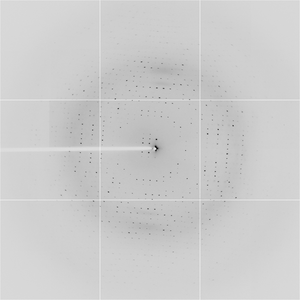

Dataset 189701_1_E2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] -84.0
Wavelength [Å] 0.91840
Experiment Date 2012-11-21
Equipment 8.2.2 at ALS (Advanced Light Source)

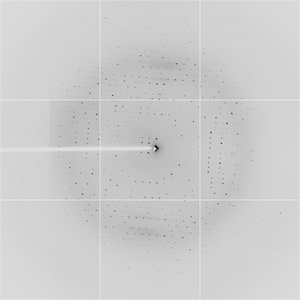

Dataset 189701_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] -84.0
Wavelength [Å] 0.97915
Experiment Date 2012-11-21
Equipment 8.2.2 at ALS (Advanced Light Source)
