Diffraction project datasets SP16878A_4k4k

  • Method: MAD
  • Resolution: 1.67 Å
  • Space group: P 21 21 2
Download all images (2.3 GB)

PDB website for 4K4K
PDB validation report for 4K4K

doi:10.18430/M34K4K

Project details

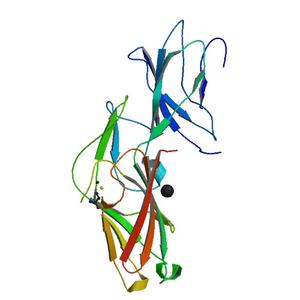

Title Crystal structure of a putative cell adhesion protein (BACUNI_00621) from Bacteroides uniformis ATCC 8492 at 1.67 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 59.40 x 140.23 x 53.45
Unit cell angles [°] 90.0, 90.0, 90.0

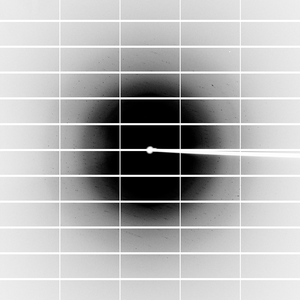

Dataset 194129_1_E1_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 114.0
Wavelength [Å] 0.97941
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

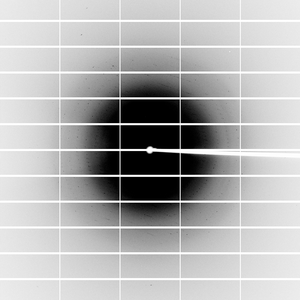

Dataset 194129_1_E2_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 114.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

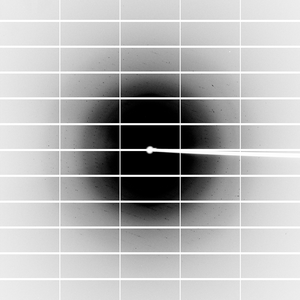

Dataset 194129_2_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 114.0
Wavelength [Å] 0.97874
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
