Diffraction project datasets SP16814A_3orj

  • Method: MAD
  • Resolution: 2.16 Å
  • Space group: P 21 21 21
Download all images (6.5 GB)

PDB website for 3ORJ
PDB validation report for 3ORJ

doi:10.18430/M33ORJ

Project details

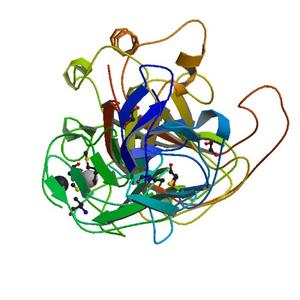

Title Crystal structure of a sugar-binding protein (BACOVA_04391) from Bacteroides ovatus at 2.16 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.23
Unit cell edges [Å] 58.46 x 71.96 x 120.81
Unit cell angles [°] 90.0, 90.0, 90.0

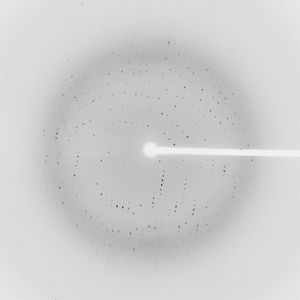

Dataset 156676_1_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 370.0
Oscillation width [°] 0.50
Phi [°] 229.0
Wavelength [Å] 0.97939
Experiment Date 2010-06-09
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

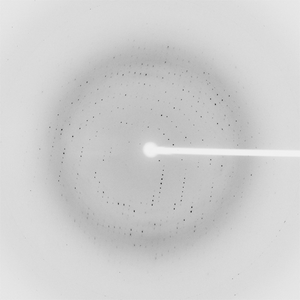

Dataset 156676_1_E2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 370.0
Oscillation width [°] 0.50
Phi [°] 229.0
Wavelength [Å] 0.93925
Experiment Date 2010-06-09
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

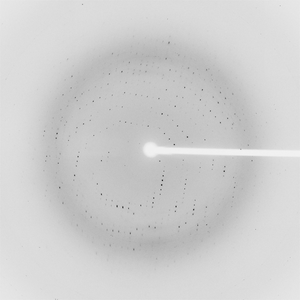

Dataset 156676_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 370.0
Oscillation width [°] 0.50
Phi [°] 229.0
Wavelength [Å] 0.97891
Experiment Date 2010-06-09
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
