Diffraction project datasets SP16761O_4k05
- Method: MAD
- Resolution: 1.65 Å
- Space group: P 21 21 21
PDB website for 4K05
PDB validation report for 4K05
doi:10.18430/M34K05
Project details

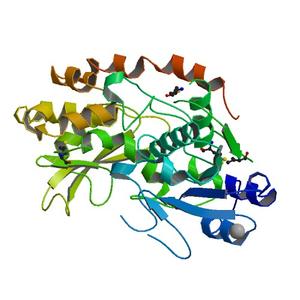

| Title | Crystal structure of a DUF1343 family protein (BF0371) from Bacteroides fragilis NCTC 9343 at 1.65 A resolution |
| Authors | JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| Bioentity | None |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 54.08 x 88.41 x 159.54 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset 192772_1_E1_#####.mccd details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 92.0 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2013-02-05 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

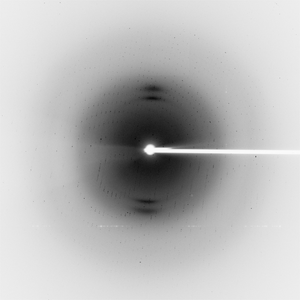

Dataset 192772_1_E2_#####.mccd details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 92.0 |
| Wavelength [Å] | 0.96109 |
| Experiment Date | 2013-02-05 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
