Diffraction project datasets SP16731C_3p2c

  • Method: SAD
  • Resolution: 1.6 Å
  • Space group: P 1 21 1
Download all images (3.2 GB)

PDB website for 3P2C

doi:10.18430/M33P2C

Project details

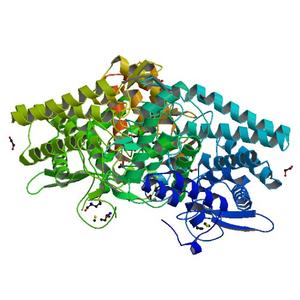

Title Crystal structure of an exo-alpha-1,6-mannosidase (bacova_03347) from bacteroides ovatus at 1.60 a resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.13 / 0.17
Unit cell edges [Å] 64.72 x 89.85 x 90.39
Unit cell angles [°] 90.0, 105.6, 90.0

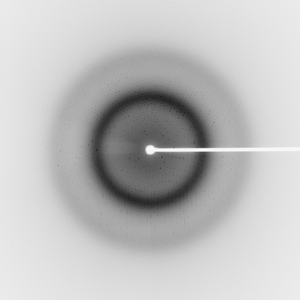

Dataset 153199_1_####.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 35.0
Wavelength [Å] 0.97920
Experiment Date 2010-05-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
