Diffraction project datasets SP16731A_3on6

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 1 21 1
Download all images (6.6 GB)

PDB website for 3ON6
PDB validation report for 3ON6

doi:10.18430/M33ON6

Project details

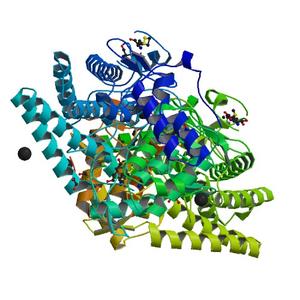

Title Crystal structure of an exo-alpha-1,6-mannosidase (bacova_03626) from bacteroides ovatus at 1.70 a resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.13 / 0.17
Unit cell edges [Å] 51.61 x 91.14 x 99.12
Unit cell angles [°] 90.0, 92.4, 90.0

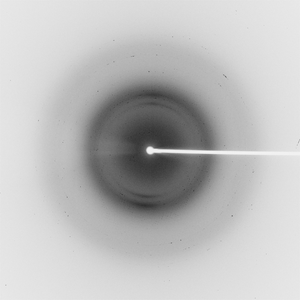

Dataset 152414_1_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 11.0
Wavelength [Å] 0.97944
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

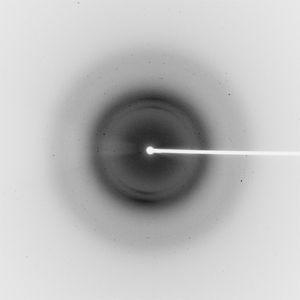

Dataset 152414_1_E2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 11.0
Wavelength [Å] 0.91162
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 152414_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 11.0
Wavelength [Å] 0.97886
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
