Diffraction project datasets SP16708A_4g5a

  • Method: MAD
  • Resolution: 1.69 Å
  • Space group: P 21 21 2
Download all images (3.9 GB)

PDB website for 4G5A
PDB validation report for 4G5A

doi:10.18430/M34G5A

Project details

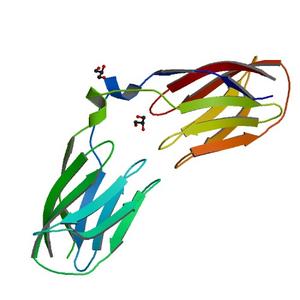

Title Crystal structure of a putative member of duf 3244 protein family (BT_1867) from Bacteroides thetaiotaomicron VPI-5482 at 1.69 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 87.04 x 93.25 x 27.65
Unit cell angles [°] 90.0, 90.0, 90.0

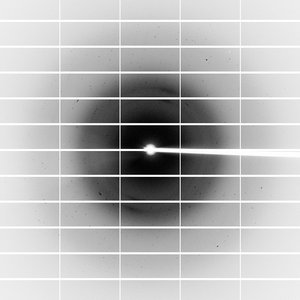

Dataset 183667_1_E1_#####.cbf details

Number of frames 330 (1 - 330)
Distance [mm] 320.0
Oscillation width [°] 0.30
Phi [°] 124.0
Wavelength [Å] 0.97949
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

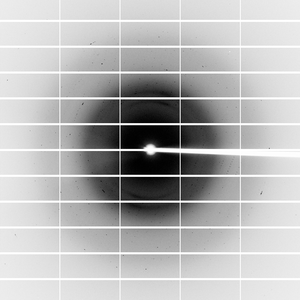

Dataset 183667_1_E2_#####.cbf details

Number of frames 330 (1 - 330)
Distance [mm] 320.0
Oscillation width [°] 0.30
Phi [°] 124.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

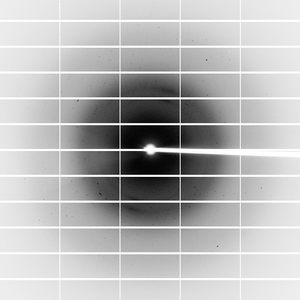

Dataset 183667_2_#####.cbf details

Number of frames 330 (1 - 330)
Distance [mm] 320.0
Oscillation width [°] 0.30
Phi [°] 124.0
Wavelength [Å] 0.97882
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
