Diffraction project datasets SP16667D_4eco
- Method: MAD
- Resolution: 2.7 Å
- Space group: P 21 21 2
PDB website for 4ECO
PDB validation report for 4ECO
doi:10.18430/M34ECO
Project details
| Title | Crystal structure of a leucine-rich repeat protein (BACEGG_03329) from Bacteroides eggerthii DSM 20697 at 2.70 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 125.84 x 193.66 x 68.19 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

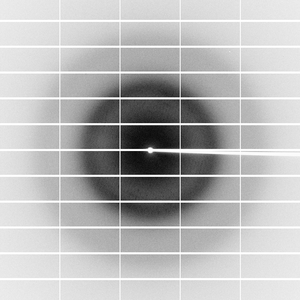

Dataset 176568_1_E1_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.10 |
| Phi [°] | 85.0 |
| Wavelength [Å] | 0.97899 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

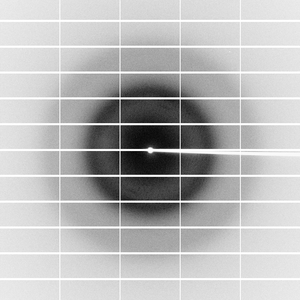

Dataset 176568_1_E2_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.10 |
| Phi [°] | 85.0 |
| Wavelength [Å] | 0.91837 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
