Diffraction project datasets SP16667A_4ecn
Project details
| Title |
Crystal structure of a leucine-rich repeat protein (BT_0210) from Bacteroides thetaiotaomicron VPI-5482 at 2.80 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.23 |
| Unit cell edges [Å] |
85.40 x
105.46 x
161.20
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

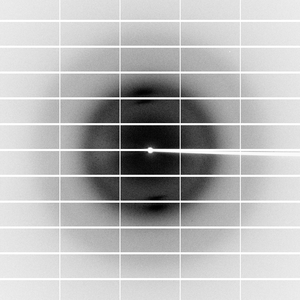

Dataset 176078_1_E1_#####.cbf details
| Number of frames |
500 (1 - 500) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
216.0 |
| Wavelength [Å] |
0.97949 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

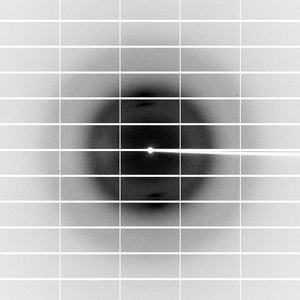

Dataset 176078_1_E2_#####.cbf details
| Number of frames |
500 (1 - 500) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
216.0 |
| Wavelength [Å] |
0.92522 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

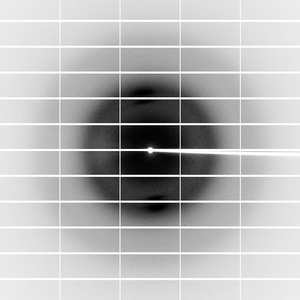

Dataset 176078_2_#####.cbf details
| Number of frames |
520 (1 - 520) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
216.0 |
| Wavelength [Å] |
0.97894 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

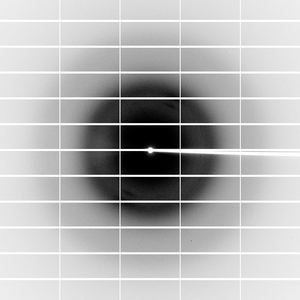

Dataset 176078_3_#####.cbf details
| Number of frames |
400 (1 - 400) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
320.0 |
| Wavelength [Å] |
0.97894 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

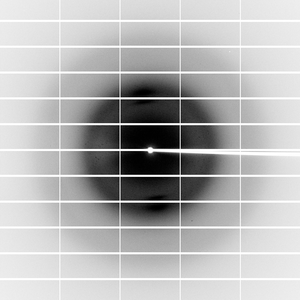

Dataset 176078_4_#####.cbf details
| Number of frames |
450 (1 - 450) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
216.0 |
| Wavelength [Å] |
0.97894 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
