Diffraction project datasets SP16654A_3owr

  • Method: MAD
  • Resolution: 1.81 Å
  • Space group: P 4
Download all images (5.0 GB)

PDB website for 3OWR

doi:10.18430/M33OWR

Project details

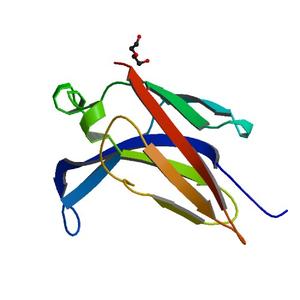

Title Crystal structure of a putative secreted protein (BF4250) from Bacteroides fragilis NCTC 9343 at 1.81 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 103.97 x 103.97 x 59.87
Unit cell angles [°] 90.0, 90.0, 90.0

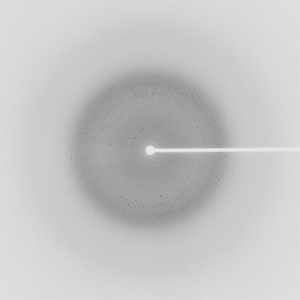

Dataset 159752_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 174.0
Wavelength [Å] 0.97922
Experiment Date 2010-07-22
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

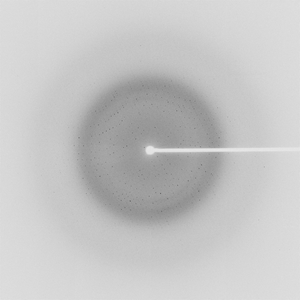

Dataset 159752_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 174.0
Wavelength [Å] 0.91837
Experiment Date 2010-07-22
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

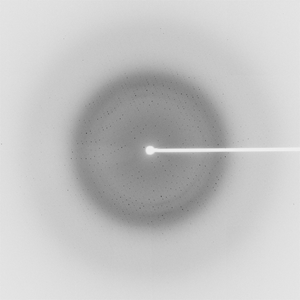

Dataset 159752_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 174.0
Wavelength [Å] 0.97903
Experiment Date 2010-07-22
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

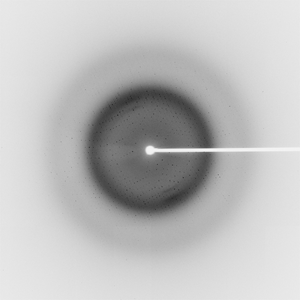

Dataset 159752_3_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 210.0
Oscillation width [°] 0.50
Phi [°] 44.0
Wavelength [Å] 0.97898
Experiment Date 2010-07-22
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
