Diffraction project datasets SP16639B_4r4k

  • Method: MAD
  • Resolution: 1.69 Å
  • Space group: C 1 2 1
Download all images (24.9 GB)

PDB website for 4R4K
PDB validation report for 4R4K

doi:10.18430/M34R4K

Project details

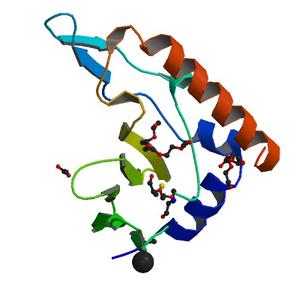

Title Crystal structure of a cystatin-like protein (BACCAC_01506) from Bacteroides caccae ATCC 43185 at 1.69 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 107.36 x 62.82 x 115.35
Unit cell angles [°] 90.0, 106.6, 90.0

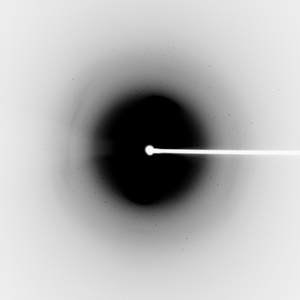

Dataset 202980_0_E1_#####.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.97946
Experiment Date 2014-02-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

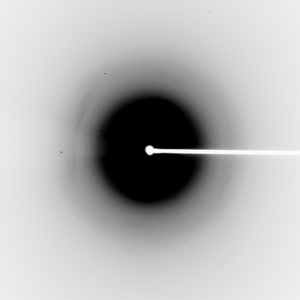

Dataset 202980_0_E2_#####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.91837
Experiment Date 2014-02-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 202980_1_E1_#####.mccd details

Number of frames 440 (1 - 440)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.97946
Experiment Date 2014-02-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

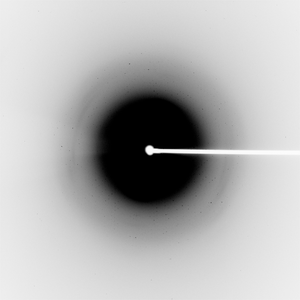

Dataset 202980_1_E2_#####.mccd details

Number of frames 440 (1 - 440)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.91837
Experiment Date 2014-02-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

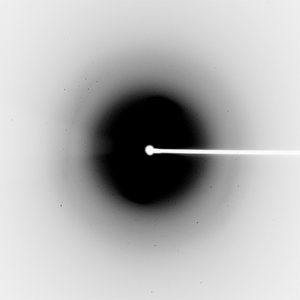

Dataset 202980_2_#####.mccd details

Number of frames 440 (1 - 440)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.97903
Experiment Date 2014-02-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
