Diffraction project datasets SP16569C_4q6k

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 1 21 1
Download all images (14.5 GB)

PDB website for 4Q6K

doi:10.18430/M34Q6K

Project details

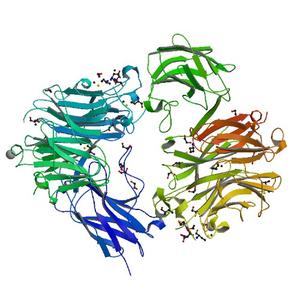

Title Crystal structure of a putative neuraminidase (BACCAC_01090) from Bacteroides caccae ATCC 43185 at 1.90 A resolution (PSI Community Target)
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
R / Rfree 0.14 / 0.17
Unit cell edges [Å] 95.89 x 124.34 x 107.71
Unit cell angles [°] 90.0, 91.6, 90.0

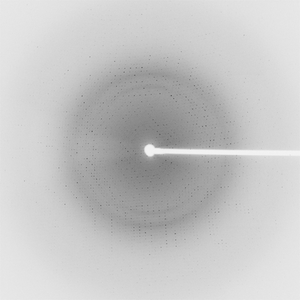

Dataset 202757_1_E1_#####.mccd details

Number of frames 600 (1 - 600)
Distance [mm] 300.0
Oscillation width [°] 0.25
Phi [°] 275.0
Wavelength [Å] 0.97939
Experiment Date 2014-02-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

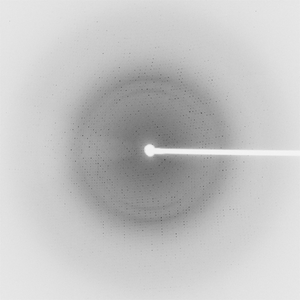

Dataset 202757_1_E2_#####.mccd details

Number of frames 600 (1 - 600)
Distance [mm] 300.0
Oscillation width [°] 0.25
Phi [°] 275.0
Wavelength [Å] 0.91837
Experiment Date 2014-02-13
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
