Diffraction project datasets SP16521B_4nkp

  • Method: MAD
  • Resolution: 1.24 Å
  • Space group: P 4
Download all images (5.1 GB)

PDB website for 4NKP
PDB validation report for 4NKP

doi:10.18430/M34NKP

Project details

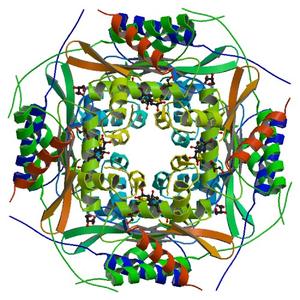

Title Crystal structure of a putative extracellular heme-binding protein (DESPIG_02683) from Desulfovibrio piger ATCC 29098 at 1.24 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.13 / 0.15
Unit cell edges [Å] 80.96 x 80.96 x 72.93
Unit cell angles [°] 90.0, 90.0, 90.0

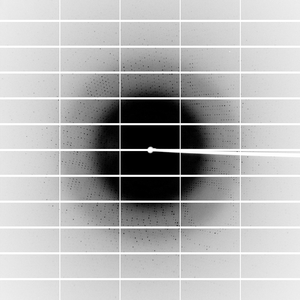

Dataset 195051_1_E1_#####.cbf details

Number of frames 440 (1 - 440)
Distance [mm] 230.0
Oscillation width [°] 0.25
Phi [°] 90.0
Wavelength [Å] 0.97879
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

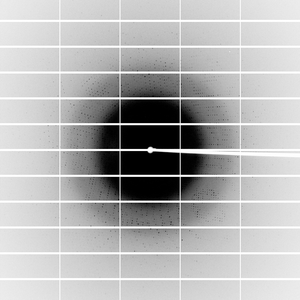

Dataset 195051_1_E2_#####.cbf details

Number of frames 440 (1 - 440)
Distance [mm] 230.0
Oscillation width [°] 0.25
Phi [°] 90.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

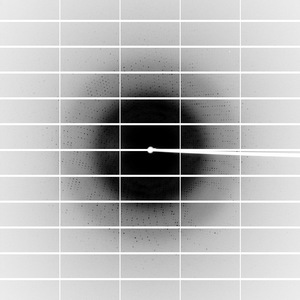

Dataset 195051_2_#####.cbf details

Number of frames 440 (1 - 440)
Distance [mm] 230.0
Oscillation width [°] 0.25
Phi [°] 90.0
Wavelength [Å] 0.97812
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
