Diffraction project datasets SP15308B_3nqk
Project details
| Title |

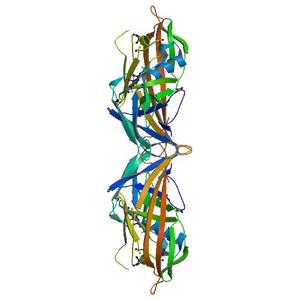

Crystal structure of a STRUCTURAL GENOMICS, UNKNOWN FUNCTION (BACOVA_03322) from Bacteroides ovatus at 2.61 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.20 / 0.24 |
| Unit cell edges [Å] |
124.07 x
124.07 x
66.89
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

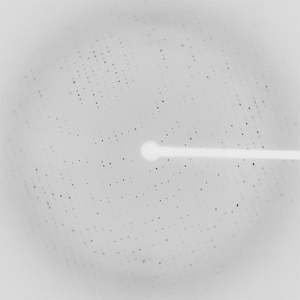

Dataset 152852_1_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
550.2 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
86.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-04-07 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

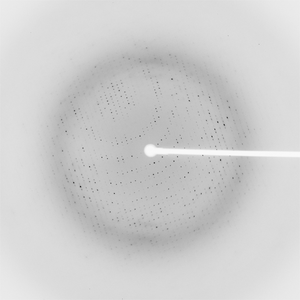

Dataset 152852_1_E1_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
86.0 |
| Wavelength [Å] |
0.97937 |
| Experiment Date |
2010-04-07 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

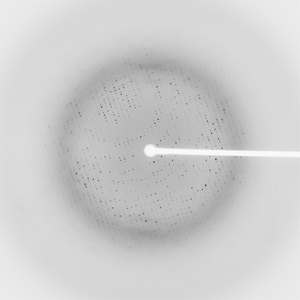

Dataset 152852_1_E2_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
86.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-04-07 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

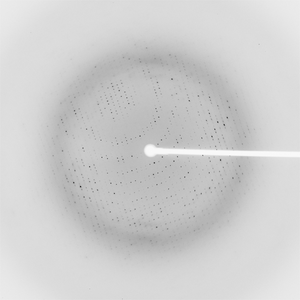

Dataset 152852_2_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
86.0 |
| Wavelength [Å] |
0.97908 |
| Experiment Date |
2010-04-07 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
