Diffraction project datasets SP14298A_3sb4
Project details
| Title |

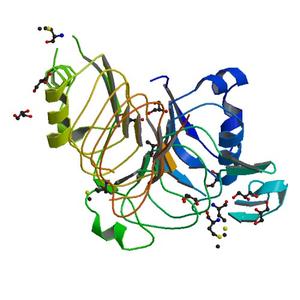

Crystal structure of a leucine-rich repeat protein (BT_1240) from Bacteroides thetaiotaomicron VPI-5482 at 1.99 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.17 / 0.20 |
| Unit cell edges [Å] |
52.21 x
62.13 x
66.86
|
| Unit cell angles [°] |
109.8,
93.8,
91.1
|

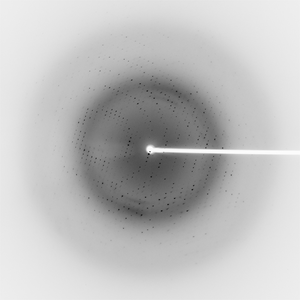

Dataset 163108_1_E1_####.mccd details
| Number of frames |
667 (1 - 667) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.30 |
| Phi [°] |
100.0 |
| Wavelength [Å] |
0.97999 |
| Experiment Date |
2010-11-22 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

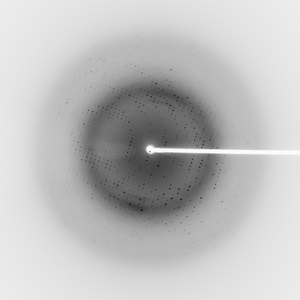

Dataset 163108_1_E2_####.mccd details
| Number of frames |
667 (1 - 667) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.30 |
| Phi [°] |
100.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2010-11-22 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

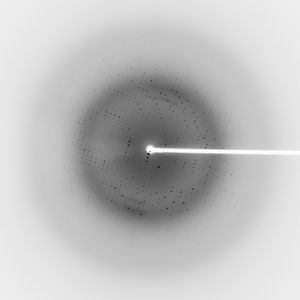

Dataset 163108_2_####.mccd details
| Number of frames |
667 (1 - 667) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.30 |
| Phi [°] |
100.0 |
| Wavelength [Å] |
0.97959 |
| Experiment Date |
2010-11-23 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
