Diffraction project datasets SP14202R_4fo5

  • Method: MAD
  • Resolution: 2.02 Å
  • Space group: P 1 21 1
Download all images (6.7 GB)

PDB website for 4FO5
PDB validation report for 4FO5

doi:10.18430/M34FO5

Project details

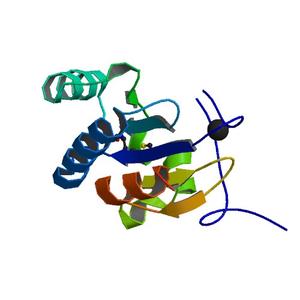

Title Crystal structure of a thioredoxin-like protein (BDI_1100) from Parabacteroides distasonis ATCC 8503 at 2.02 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 33.16 x 49.34 x 40.52
Unit cell angles [°] 90.0, 112.2, 90.0

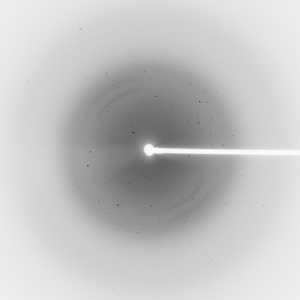

Dataset 181460_1_E1_#####.mccd details

Number of frames 160 (1 - 160)
Distance [mm] 292.0
Oscillation width [°] 1.00
Phi [°] 140.0
Wavelength [Å] 0.97922
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

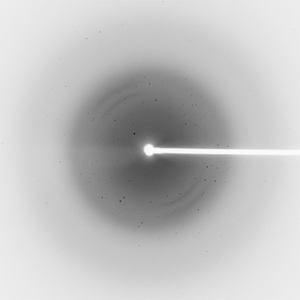

Dataset 181460_1_E2_#####.mccd details

Number of frames 160 (1 - 160)
Distance [mm] 292.0
Oscillation width [°] 1.00
Phi [°] 140.0
Wavelength [Å] 0.91162
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

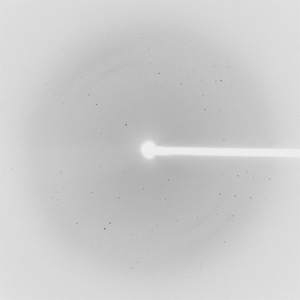

Dataset 181460_2_#####.mccd details

Number of frames 190 (1 - 190)
Distance [mm] 450.0
Oscillation width [°] 2.00
Phi [°] 139.5
Wavelength [Å] 0.91162
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
