Diffraction project datasets SP14019C_4lba

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 64
Download all images (5.1 GB)

PDB website for 4LBA

doi:10.18430/M34LBA

Project details

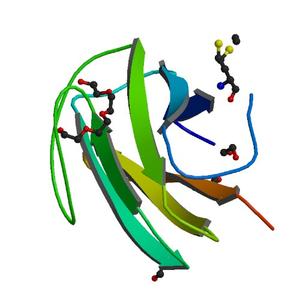

Title Crystal structure of a conjugative transposon lipoprotein (BACEGG_03088) from Bacteroides eggerthii DSM 20697 at 1.70 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
R / Rfree 0.17 / 0.19
Unit cell edges [Å] 126.92 x 126.92 x 39.35
Unit cell angles [°] 90.0, 90.0, 120.0

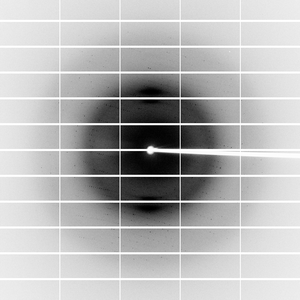

Dataset 195015_1_E1_#####.cbf details

Number of frames 480 (1 - 480)
Distance [mm] 300.0
Oscillation width [°] 0.25
Phi [°] 40.0
Wavelength [Å] 0.97864
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

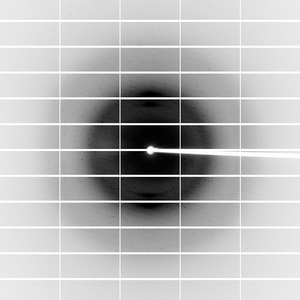

Dataset 195015_1_E2_#####.cbf details

Number of frames 480 (1 - 480)
Distance [mm] 300.0
Oscillation width [°] 0.25
Phi [°] 40.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 195015_2_#####.cbf details

Number of frames 480 (1 - 480)
Distance [mm] 300.0
Oscillation width [°] 0.25
Phi [°] 40.0
Wavelength [Å] 0.97817
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
