Diffraction project datasets SP13991A_4r03

  • Method: MAD
  • Resolution: 1.5 Å
  • Space group: I 21 21 21
Download all images (8.0 GB)

PDB website for 4R03
PDB validation report for 4R03

doi:10.18430/M34R03

Project details

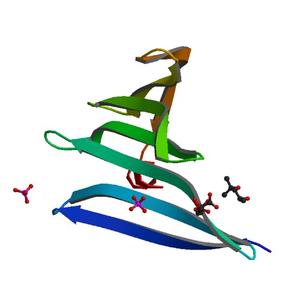

Title Crystal structure of a DUF3836 family protein (BDI_3222) from Parabacteroides distasonis ATCC 8503 at 1.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.19
Unit cell edges [Å] 59.00 x 71.70 x 82.68
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 206483_1_E1_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 240.0
Oscillation width [°] 0.50
Phi [°] 243.0
Wavelength [Å] 0.97934
Experiment Date 2014-06-10
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

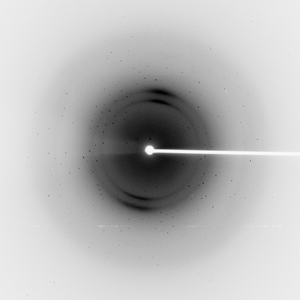

Dataset 206483_1_E2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 240.0
Oscillation width [°] 0.50
Phi [°] 243.0
Wavelength [Å] 0.95369
Experiment Date 2014-06-10
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

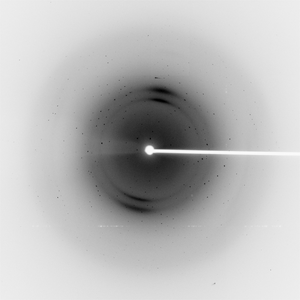

Dataset 206483_2_#####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 240.0
Oscillation width [°] 0.50
Phi [°] 243.0
Wavelength [Å] 0.97907
Experiment Date 2014-06-10
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
