Diffraction project datasets SP13905B_4gl3

  • Method: MAD
  • Resolution: 2.01 Å
  • Space group: H 3 2
Download all images (4.6 GB)

PDB website for 4GL3

doi:10.18430/M34GL3

Project details

Title Crystal structure of a putative glucoamylase (BACUNI_03963) from Bacteroides uniformis ATCC 8492 at 2.01 A resolution
Authors Joint center for structural genomics (JCSG)
R / Rfree 0.14 / 0.17
Unit cell edges [Å] 121.57 x 121.57 x 267.89
Unit cell angles [°] 90.0, 90.0, 120.0

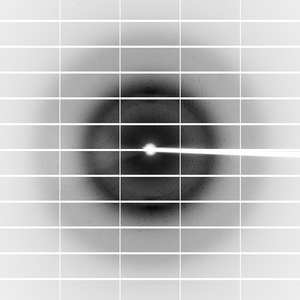

Dataset 183754_1_E1_#####.cbf details

Number of frames 434 (1 - 434)
Distance [mm] 300.0
Oscillation width [°] 0.30
Phi [°] 80.0
Wavelength [Å] 0.97920
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

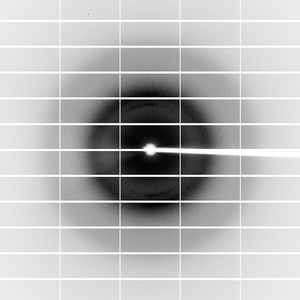

Dataset 183754_1_E2_#####.cbf details

Number of frames 434 (1 - 434)
Distance [mm] 300.0
Oscillation width [°] 0.30
Phi [°] 80.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

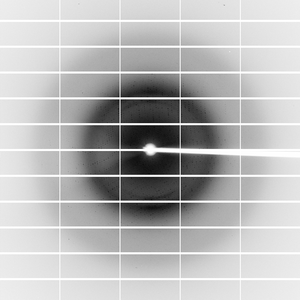

Dataset 183754_2_#####.cbf details

Number of frames 300 (1 - 300)
Distance [mm] 300.0
Oscillation width [°] 0.30
Phi [°] 80.0
Wavelength [Å] 0.97883
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
