Diffraction project datasets SP13895A_3qwn
Project details
| Title |

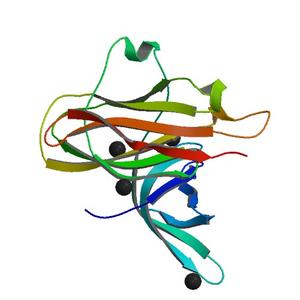

Crystal structure of a NigD-like immunity protein (BACCAC_03262) from Bacteroides caccae ATCC 43185 at 2.42 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.21 |
| Unit cell edges [Å] |
132.31 x
132.31 x
163.35
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

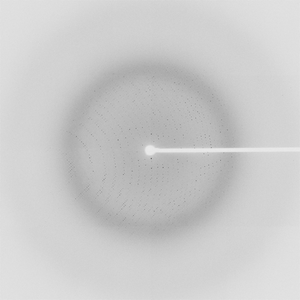

Dataset 159700_1_E1_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
355.0 |
| Wavelength [Å] |
0.97920 |
| Experiment Date |
2010-07-22 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

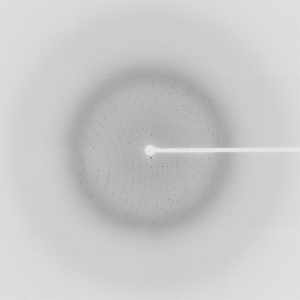

Dataset 159700_1_E2_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
355.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-07-22 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

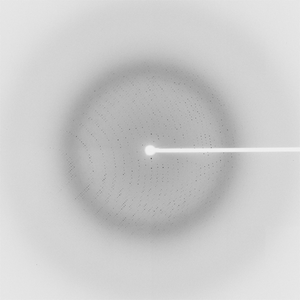

Dataset 159700_2_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
355.0 |
| Wavelength [Å] |
0.97908 |
| Experiment Date |
2010-07-22 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

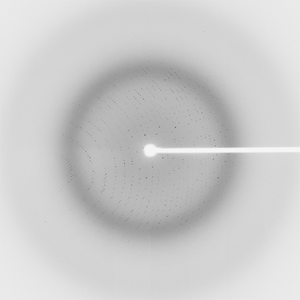

Dataset 159700_3_####.mccd details
| Number of frames |
260 (1 - 260) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
329.0 |
| Wavelength [Å] |
0.97901 |
| Experiment Date |
2010-07-22 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
