Diffraction project datasets SP13881C_3ohg
- Method: MAD
- Resolution: 1.8 Å
- Space group: P 61
PDB website for 3OHG
doi:10.18430/M33OHG
Project details

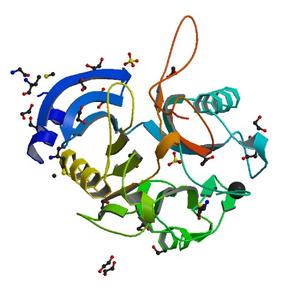

| Title | Crystal structure of a protein with unknown function from DUF2233 family (BACOVA_00430) from Bacteroides ovatus at 1.80 A resolution |
| Authors | Das, D., Lee, W.S., Grant, J.C., Chiu, H.J., Farr, C.L., Vance, J., Klock, H.E., Knuth, M.W., Miller, M.D., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Kornfeld, S., Wilson, I.A. |
| R / Rfree | 0.13 / 0.15 |
| Unit cell edges [Å] | 96.96 x 96.96 x 91.11 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

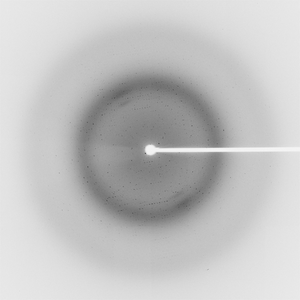

Dataset 153055_1_E1_####.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 51.0 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2010-05-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

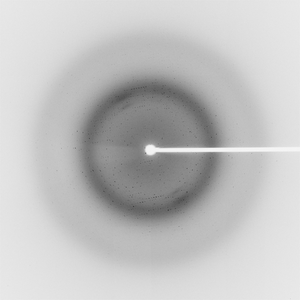

Dataset 153055_1_E2_####.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 51.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2010-05-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

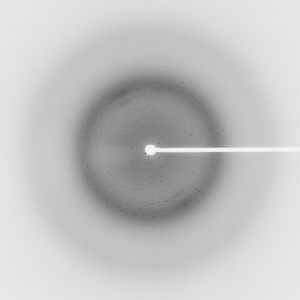

Dataset 153055_2_####.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 51.0 |
| Wavelength [Å] | 0.97919 |
| Experiment Date | 2010-05-13 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
