Diffraction project datasets SP13834A_3pay

  • Method: MAD
  • Resolution: 2.5 Å
  • Space group: P 1
Download all images (3.3 GB)

PDB website for 3PAY

doi:10.18430/M33PAY

Project details

Title Crystal structure of a putative adhesin (BACOVA_04077) from Bacteroides ovatus at 2.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.21 / 0.24
Unit cell edges [Å] 67.11 x 78.78 x 84.11
Unit cell angles [°] 93.9, 102.1, 103.5

Dataset 160507_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 227.0
Wavelength [Å] 0.97960
Experiment Date 2010-09-16
Equipment 8.2.2 at ALS (Advanced Light Source)

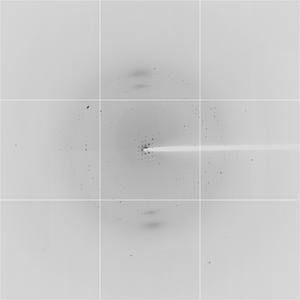

Dataset 160507_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 227.0
Wavelength [Å] 0.95370
Experiment Date 2010-09-16
Equipment 8.2.2 at ALS (Advanced Light Source)

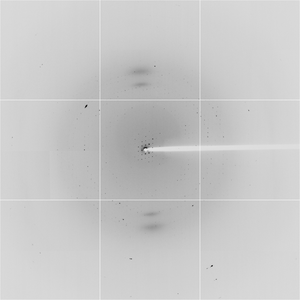

Dataset 160507_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 227.0
Wavelength [Å] 0.97930
Experiment Date 2010-09-16
Equipment 8.2.2 at ALS (Advanced Light Source)
