Diffraction project datasets SP13795D_4l3r

  • Method: MAD
  • Resolution: 2.23 Å
  • Space group: P 21 21 21
Download all images (2.5 GB)

PDB website for 4L3R

doi:10.18430/M34L3R

Project details

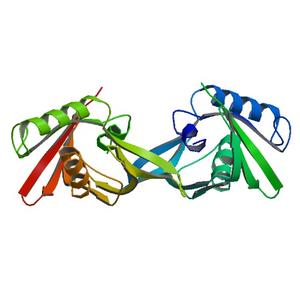

Title Crystal structure of a DUF4847 family protein (BACEGG_01241) from Bacteroides eggerthii DSM 20697 at 2.23 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.20 / 0.23
Unit cell edges [Å] 57.89 x 59.17 x 102.31
Unit cell angles [°] 90.0, 90.0, 90.0

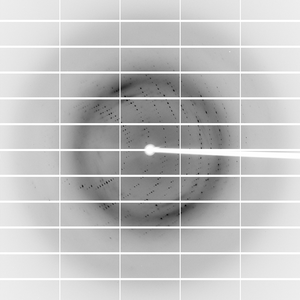

Dataset 191124_1_E1_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 220.0
Wavelength [Å] 0.97949
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

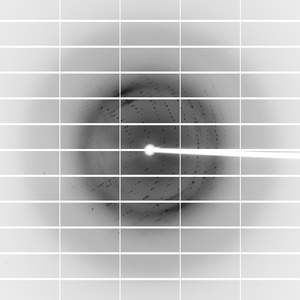

Dataset 191124_1_E2_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 220.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

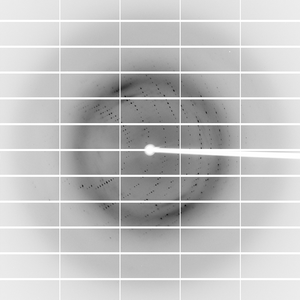

Dataset 191124_2_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 220.0
Wavelength [Å] 0.97886
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
