Diffraction project datasets SP13677A_4e5v

  • Method: MAD
  • Resolution: 1.75 Å
  • Space group: P 1 21 1
Download all images (5.7 GB)

PDB website for 4E5V
PDB validation report for 4E5V

doi:10.18430/M34E5V

Project details

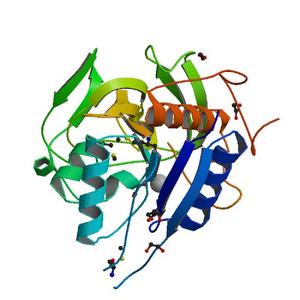

Title Crystal structure of a Putative thua-like protein (PARMER_02418) from Parabacteroides merdae ATCC 43184 at 1.75 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.15 / 0.17
Unit cell edges [Å] 42.59 x 95.37 x 70.60
Unit cell angles [°] 90.0, 102.1, 90.0

Dataset 172196_1_E1_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 280.0
Oscillation width [°] 0.25
Phi [°] 180.0
Wavelength [Å] 0.97941
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

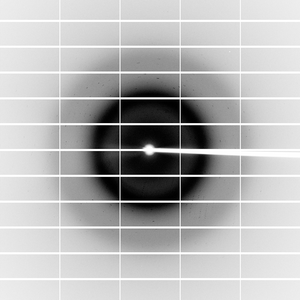

Dataset 172196_1_E2_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 280.0
Oscillation width [°] 0.25
Phi [°] 180.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

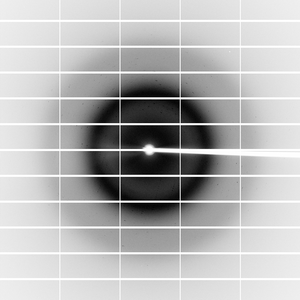

Dataset 172196_2_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 280.0
Oscillation width [°] 0.25
Phi [°] 180.0
Wavelength [Å] 0.97882
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

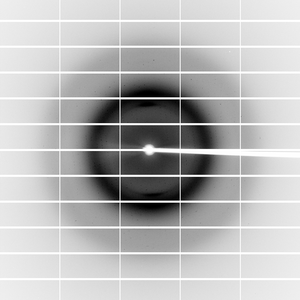

Dataset 172196_3_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 280.0
Oscillation width [°] 0.25
Phi [°] 280.25
Wavelength [Å] 0.97882
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
