Diffraction project datasets SP13645A_3nmb

  • Method: MAD
  • Resolution: 2.4 Å
  • Space group: P 43 21 2
Download all images (6.1 GB)

PDB website for 3NMB
PDB validation report for 3NMB

doi:10.18430/M33NMB

Project details

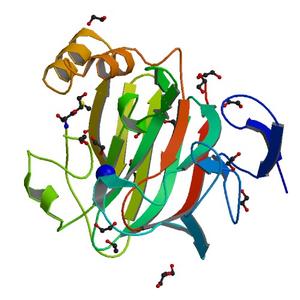

Title Crystal structure of a putative sugar hydrolase (BACOVA_03189) from Bacteroides ovatus at 2.40 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 99.88 x 99.88 x 94.72
Unit cell angles [°] 90.0, 90.0, 90.0

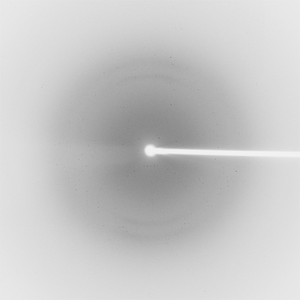

Dataset 152803_1_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 84.0
Wavelength [Å] 0.97931
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

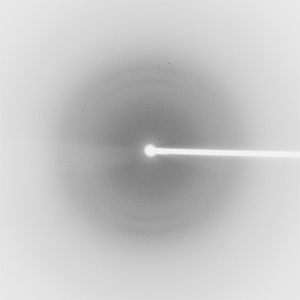

Dataset 152803_1_E2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 84.0
Wavelength [Å] 0.91837
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

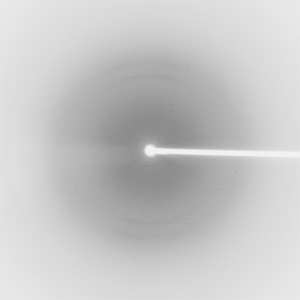

Dataset 152803_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 84.0
Wavelength [Å] 0.97868
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
