Diffraction project datasets SP13538A_4qrl

  • Method: Molecular Replacement
  • Resolution: 1.79 Å
  • Space group: P 32 2 1
Download all images (2.6 GB)

PDB website for 4QRL
PDB validation report for 4QRL

doi:10.18430/M34QRL

Project details

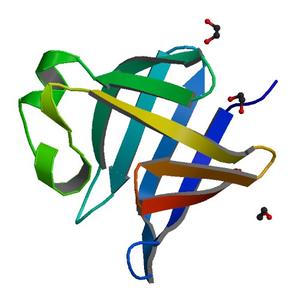

Title Crystal structure of a lipocalin-like protein (BACUNI_01346) from Bacteroides uniformis ATCC 8492 at 1.79 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 48.85 x 48.85 x 78.45
Unit cell angles [°] 90.0, 90.0, 120.0

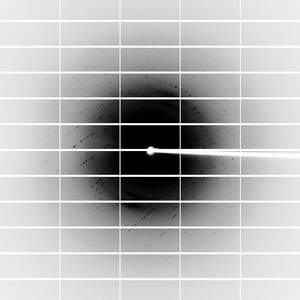

Dataset 196603_1_E1_#####.cbf details

Number of frames 240 (1 - 240)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 178.0
Wavelength [Å] 0.97894
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 196603_1_E2_#####.cbf details

Number of frames 240 (1 - 240)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 178.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

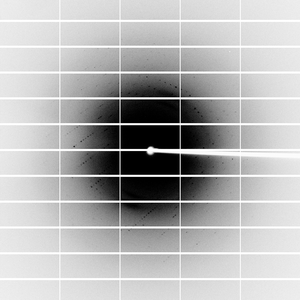

Dataset 196603_2_#####.cbf details

Number of frames 260 (1 - 260)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 178.0
Wavelength [Å] 0.97960
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
