Diffraction project datasets SP13489F_4jrf

  • Method: MAD
  • Resolution: 1.98 Å
  • Space group: I 4
Download all images (4.3 GB)

PDB website for 4JRF
PDB validation report for 4JRF

doi:10.18430/M34JRF

Project details

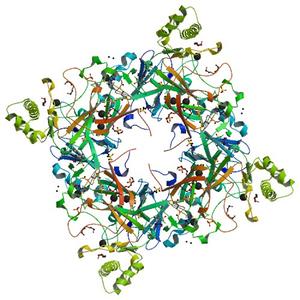

Title Crystal structure of a putative cell adhesion protein (BACOVA_01548) from Bacteroides ovatus ATCC 8483 at 1.98 A resolution (PSI Community Target, Nakayama)
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.16 / 0.18
Unit cell edges [Å] 134.02 x 134.02 x 57.73
Unit cell angles [°] 90.0, 90.0, 90.0

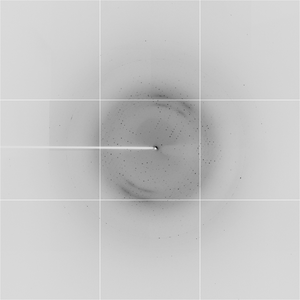

Dataset 186591_1_###.img details

Number of frames 360 (1 - 360)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 239.0
Wavelength [Å] 0.97903
Experiment Date 2012-09-19
Equipment 8.2.2 at ALS (Advanced Light Source)

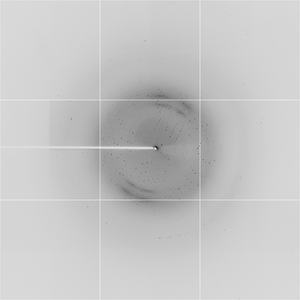

Dataset 186591_2_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 239.0
Wavelength [Å] 0.97934
Experiment Date 2012-09-19
Equipment 8.2.2 at ALS (Advanced Light Source)

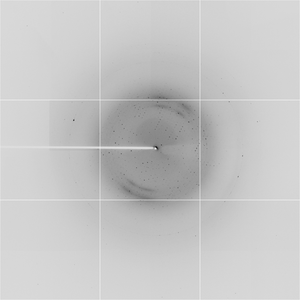

Dataset 186591_2_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 239.0
Wavelength [Å] 0.95373
Experiment Date 2012-09-19
Equipment 8.2.2 at ALS (Advanced Light Source)
