Diffraction project datasets SP13287B_4gzv

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: P 1
Download all images (11.2 GB)

PDB website for 4GZV

doi:10.18430/M34GZV

Project details

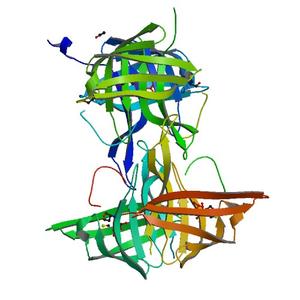

Title Crystal structure of a lipocalin family protein (BACOVA_00364) from Bacteroides ovatus ATCC 8483 at 1.95 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 44.78 x 66.32 x 109.74
Unit cell angles [°] 88.2, 82.3, 74.8

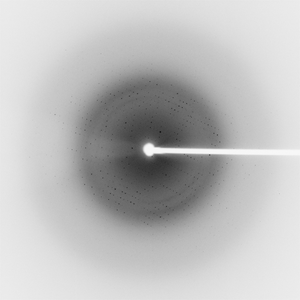

Dataset 180999_1_E1_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 244.0
Wavelength [Å] 0.97920
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 180999_1_E2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 244.0
Wavelength [Å] 0.91162
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 180999_2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 244.0
Wavelength [Å] 0.97905
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

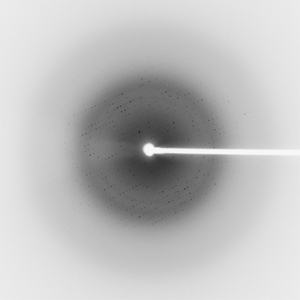

Dataset 180999_3_E1_#####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 64.0
Wavelength [Å] 0.97920
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

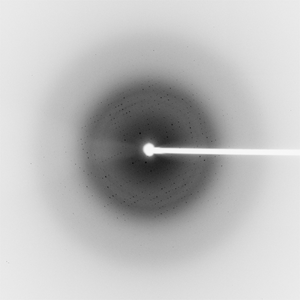

Dataset 180999_3_E2_#####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 64.0
Wavelength [Å] 0.91162
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 180999_4_#####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 64.0
Wavelength [Å] 0.97905
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
