Diffraction project datasets SP13279C_4e6f

  • Method: MAD
  • Resolution: 1.49 Å
  • Space group: P 1 21 1
Download all images (5.2 GB)

PDB website for 4E6F
PDB validation report for 4E6F

doi:10.18430/M34E6F

Project details

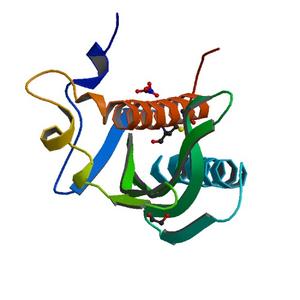

Title Crystal structure of a DUF4468 family protein (BACOVA_04320) from Bacteroides ovatus ATCC 8483 at 1.49 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.18
Unit cell edges [Å] 49.24 x 89.08 x 52.59
Unit cell angles [°] 90.0, 105.5, 90.0

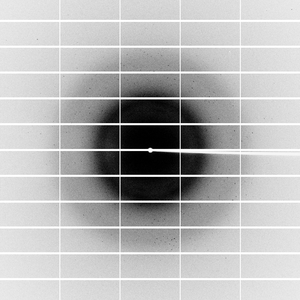

Dataset 176779_1_E1_#####.cbf details

Number of frames 720 (1 - 720)
Distance [mm] 250.0
Oscillation width [°] 0.25
Phi [°] 181.0
Wavelength [Å] 0.97972
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

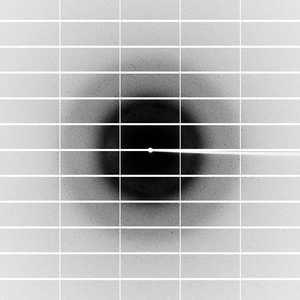

Dataset 176779_1_E2_#####.cbf details

Number of frames 720 (1 - 720)
Distance [mm] 250.0
Oscillation width [°] 0.25
Phi [°] 181.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

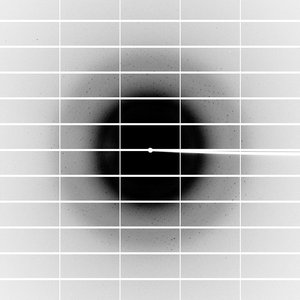

Dataset 176779_2_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 181.0
Wavelength [Å] 0.97917
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
