Diffraction project datasets SP13263A_4qrj

  • Method: Molecular Replacement
  • Resolution: 2.2 Å
  • Space group: P 1
Download all images (8.2 GB)

PDB website for 4QRJ
PDB validation report for 4QRJ

doi:10.18430/M34QRJ

Project details

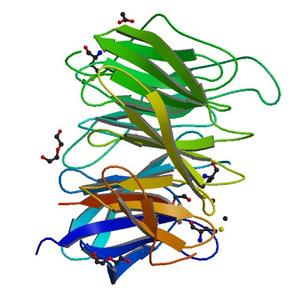

Title Crystal structure of a putative 6-phosphogluconolactonase (BACUNI_04672) from Bacteroides uniformis ATCC 8492 at 2.20 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 40.55 x 52.19 x 78.88
Unit cell angles [°] 95.2, 90.5, 94.4

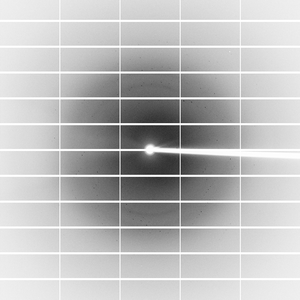

Dataset 190819_1_E1_#####.cbf details

Number of frames 734 (1 - 734)
Distance [mm] 400.0
Oscillation width [°] 0.30
Phi [°] 326.0
Wavelength [Å] 0.97925
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

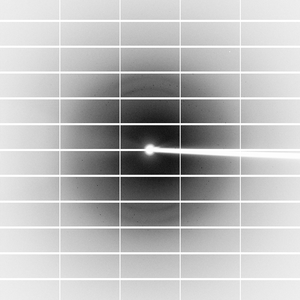

Dataset 190819_1_E2_#####.cbf details

Number of frames 734 (1 - 734)
Distance [mm] 400.0
Oscillation width [°] 0.30
Phi [°] 326.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

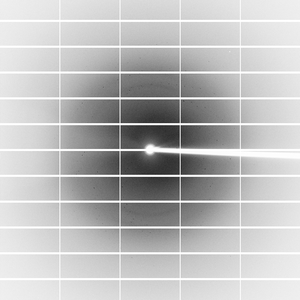

Dataset 190819_2_#####.cbf details

Number of frames 734 (1 - 734)
Distance [mm] 400.0
Oscillation width [°] 0.30
Phi [°] 326.0
Wavelength [Å] 0.97874
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
