Diffraction project datasets SP13221C_4hw6

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 1 21 1
Download all images (6.4 GB)

PDB website for 4HW6
PDB validation report for 4HW6

doi:10.18430/M34HW6

Project details

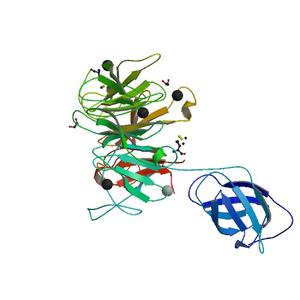

Title Crystal structure of an auxiliary nutrient binding protein (BACOVA_00264) from Bacteroides ovatus ATCC 8483 at 1.70 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 104.29 x 81.55 x 128.53
Unit cell angles [°] 90.0, 108.6, 90.0

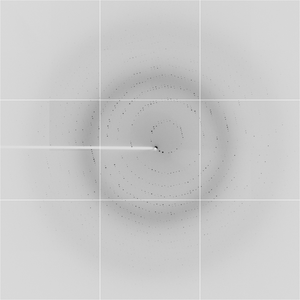

Dataset 185723_1_E1_###.img details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Wavelength [Å] 0.97934
Experiment Date 2012-09-20
Equipment 8.2.2 at ALS (Advanced Light Source)

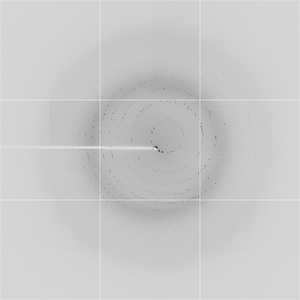

Dataset 185723_1_E2_###.img details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Wavelength [Å] 0.91840
Experiment Date 2012-09-20
Equipment 8.2.2 at ALS (Advanced Light Source)

Dataset 185723_2_###.img details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Wavelength [Å] 0.97911
Experiment Date 2012-09-20
Equipment 8.2.2 at ALS (Advanced Light Source)
