Diffraction project datasets SP13217A_3no2

  • Method: MAD
  • Resolution: 1.35 Å
  • Space group: P 21 21 21
Download all images (4.1 GB)

PDB website for 3NO2
PDB validation report for 3NO2

doi:10.18430/M33NO2

Project details

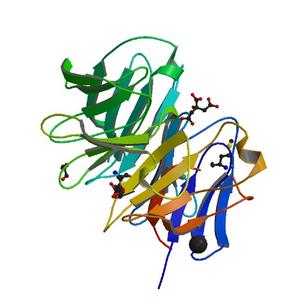

Title Crystal structure of a protein of unknown function (BACCAC_01654) from Bacteroides caccae at 1.35 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.16
Unit cell edges [Å] 46.17 x 63.80 x 105.60
Unit cell angles [°] 90.0, 90.0, 90.0

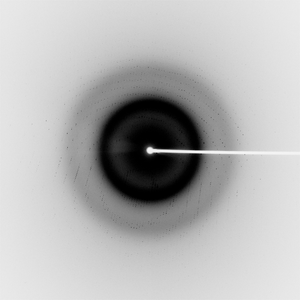

Dataset 152274_1_E1_####.mccd details

Number of frames 110 (1 - 110)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 230.0
Wavelength [Å] 0.97941
Experiment Date 2010-04-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

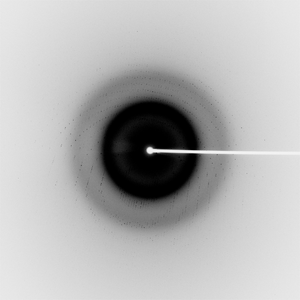

Dataset 152274_1_E2_####.mccd details

Number of frames 110 (1 - 110)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 230.0
Wavelength [Å] 0.91837
Experiment Date 2010-04-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

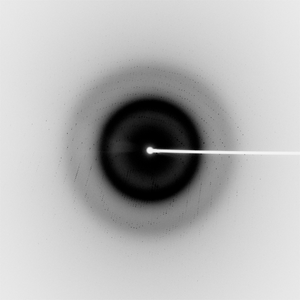

Dataset 152274_2_####.mccd details

Number of frames 110 (1 - 110)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 230.0
Wavelength [Å] 0.97894
Experiment Date 2010-04-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
