Diffraction project datasets SP13193M_4hbr
- Method: SAD
- Resolution: 2.4 Å
- Space group: P 32 2 1
PDB website for 4HBR
PDB validation report for 4HBR
doi:10.18430/M34HBR
Project details

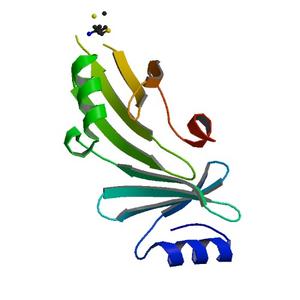

| Title | Crystal structure of a putative periplasmic proteins (BACEGG_01429) from Bacteroides eggerthii DSM 20697 at 2.40 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.21 |
| Unit cell edges [Å] | 117.64 x 117.64 x 150.12 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

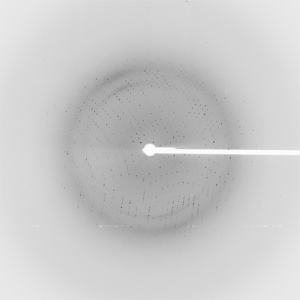

Dataset 185350_1_#####.mccd details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 144.0 |
| Wavelength [Å] | 0.97923 |
| Experiment Date | 2012-08-09 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
