Diffraction project datasets SP13193J_4k61

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: I 4
Download all images (3.4 GB)

PDB website for 4K61
PDB validation report for 4K61

doi:10.18430/M34K61

Project details

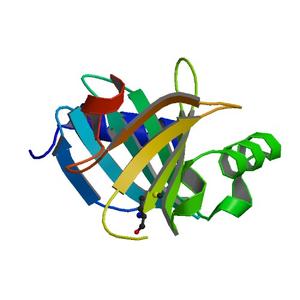

Title Crystal structure of a DUF2874 family protein (BACUNI_01296) from Bacteroides uniformis ATCC 8492 at 1.70 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.19 / 0.21
Unit cell edges [Å] 86.77 x 86.77 x 85.63
Unit cell angles [°] 90.0, 90.0, 90.0

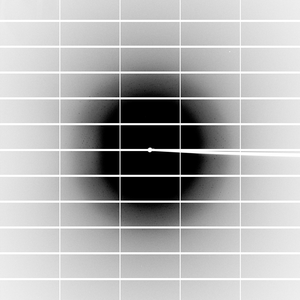

Dataset 194045_1_E1_#####.cbf details

Number of frames 290 (1 - 290)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 76.0
Wavelength [Å] 0.97926
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

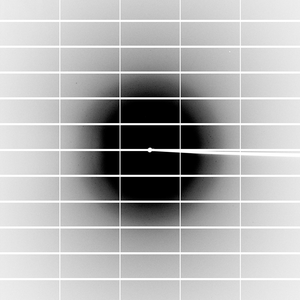

Dataset 194045_1_E2_#####.cbf details

Number of frames 290 (1 - 290)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 76.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

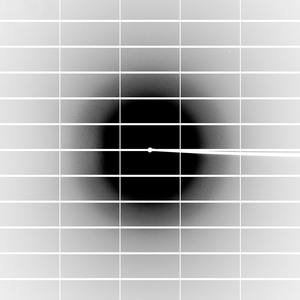

Dataset 194045_2_#####.cbf details

Number of frames 290 (1 - 290)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 76.0
Wavelength [Å] 0.97876
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
