Diffraction project datasets SP12873A_3oyv
- Method: MAD
- Resolution: 1.25 Å
- Space group: C 1 2 1
PDB website for 3OYV
doi:10.18430/M33OYV
Project details
| Title | Crystal structure of an imelysin peptidase (BACOVA_03801) from Bacteroides ovatus ATCC 8483 at 1.25 A resolution |
| Authors | Xu, Q., Rawlings, N.D., Farr, C.L., Chiu, H.J., Grant, J.C., Jaroszewski, L., Klock, H.E., Knuth, M.W., Miller, M.D., Weekes, D., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| R / Rfree | 0.13 / 0.16 |
| Unit cell edges [Å] | 104.43 x 47.92 x 83.91 |
| Unit cell angles [°] | 90.0, 124.6, 90.0 |

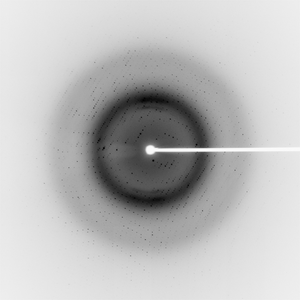

Dataset 152933_1_E1_####.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 241.0 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2010-05-12 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

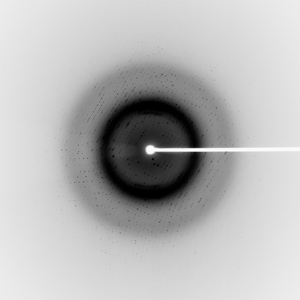

Dataset 152933_1_E2_####.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 241.0 |
| Wavelength [Å] | 0.85503 |
| Experiment Date | 2010-05-12 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

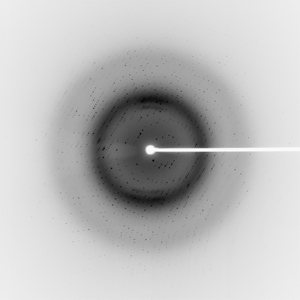

Dataset 152933_2_####.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 241.0 |
| Wavelength [Å] | 0.97911 |
| Experiment Date | 2010-05-12 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
