Diffraction project datasets SP12873A_3n8u

  • Method: MAD
  • Resolution: 1.44 Å
  • Space group: C 1 2 1
Download all images (13.4 GB)

PDB website for 3N8U

doi:10.18430/M33N8U

Project details

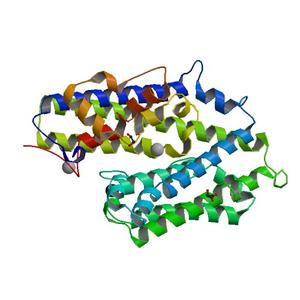

Title Crystal structure of an imelysin peptidase (BACOVA_03801) from Bacteroides ovatus at 1.44 A resolution
Authors Xu, Q., Rawlings, N.D., Farr, C.L., Chiu, H.J., Grant, J.C., Jaroszewski, L., Klock, H.E., Knuth, M.W., Miller, M.D., Weekes, D., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A.
R / Rfree 0.17 / 0.19
Unit cell edges [Å] 131.47 x 49.93 x 128.32
Unit cell angles [°] 90.0, 117.6, 90.0

Dataset 152245_1_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 175.0
Oscillation width [°] 1.00
Phi [°] 111.0
Wavelength [Å] 0.97947
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

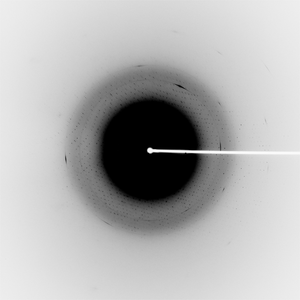

Dataset 152245_1_E2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 175.0
Oscillation width [°] 1.00
Phi [°] 111.0
Wavelength [Å] 0.91837
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

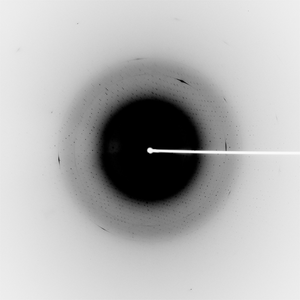

Dataset 152245_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 175.0
Oscillation width [°] 1.00
Phi [°] 111.0
Wavelength [Å] 0.97901
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

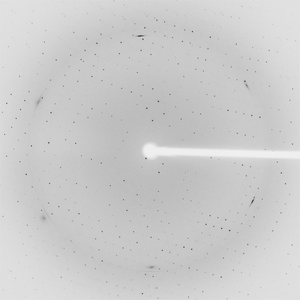

Dataset 152245_3_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 480.2
Oscillation width [°] 1.00
Phi [°] 111.0
Wavelength [Å] 0.97947
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

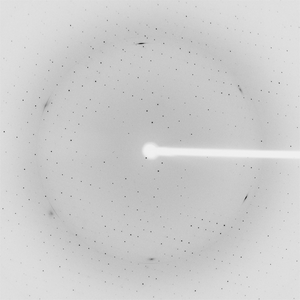

Dataset 152245_3_E2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 480.0
Oscillation width [°] 1.00
Phi [°] 111.0
Wavelength [Å] 0.91837
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

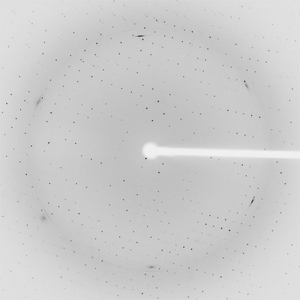

Dataset 152245_4_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 480.0
Oscillation width [°] 1.00
Phi [°] 111.0
Wavelength [Å] 0.97901
Experiment Date 2010-04-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
