Diffraction project datasets SP1264D_4h1x

  • Method: MAD
  • Resolution: 1.77 Å
  • Space group: C 1 2 1
Download all images (5.5 GB)

PDB website for 4H1X
PDB validation report for 4H1X

doi:10.18430/M34H1X

Project details

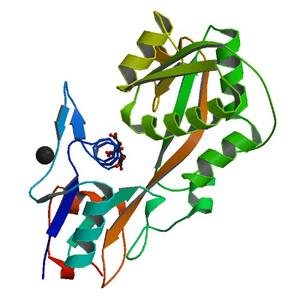

Title Crystal structure of a phosphate ABC transporter, phosphate-binding protein (SP_2084) from Streptococcus pneumoniae TIGR4 at 1.77 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 72.74 x 61.62 x 67.23
Unit cell angles [°] 90.0, 120.3, 90.0

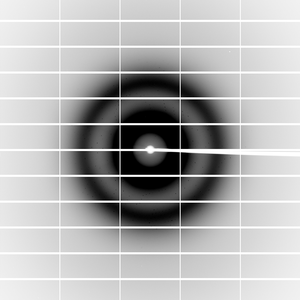

Dataset 183676_1_E1_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 220.0
Wavelength [Å] 0.97922
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

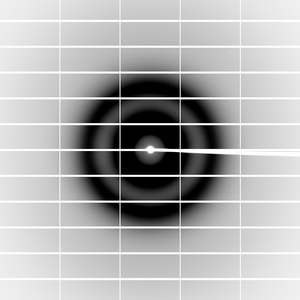

Dataset 183676_1_E2_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 220.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

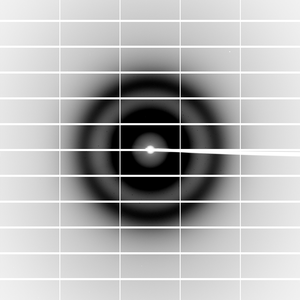

Dataset 183676_2_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 220.0
Wavelength [Å] 0.97883
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
