Diffraction project datasets SORBS2_x239191_5vei
- Resolution: 1.33 Å
- Space group: I 1 2 1
PDB website for 5VEI
PDB validation report for 5VEI
doi:10.18430/M35VEI
Project details

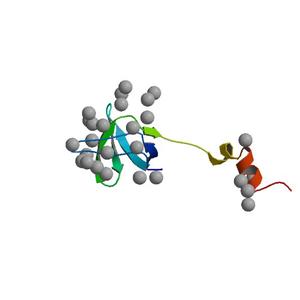

| Title | Crystal structure of the SH3 domain of human sorbin and SH3 domain-containing protein 2 |
| Authors | Liu, Y., Tempel, W., Huang, H., Gu, J., Liu, K., Sidhu, S.S., Bountra, C., Arrowsmith, C.H., Edwards, A.M., Min, J. |
| R / Rfree | 0.19 / 0.21 |
| Unit cell edges [Å] | 46.20 x 27.49 x 58.83 |
| Unit cell angles [°] | 90.0, 101.0, 90.0 |

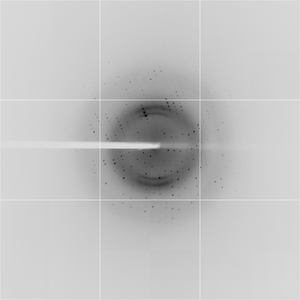

Dataset r1.####.img details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 149.9 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -100.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.0033 |
| Wavelength [Å] | 0.97911 |
| Experiment Date | 2012-12-14 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
