Diffraction project datasets SF20744C_4e6e
- Method: SAD
- Resolution: 2.12 Å
- Space group: P 32 2 1
PDB website for 4E6E
PDB validation report for 4E6E
doi:10.18430/M34E6E
Project details

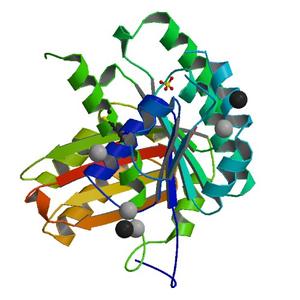

| Title | Crystal structure of a putative cell division protein FtsZ (Tfu_1113) from Thermobifida fusca YX-ER1 at 2.22 A resolution (PSI Community Target, van Wezel G.P.) |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.23 |
| Unit cell edges [Å] | 80.57 x 80.57 x 92.45 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

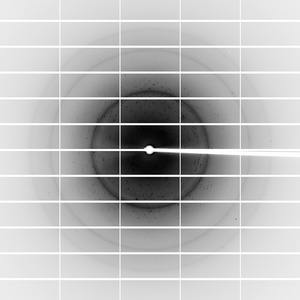

Dataset 172170_1_#####.cbf details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 84.0 |
| Wavelength [Å] | 0.97895 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

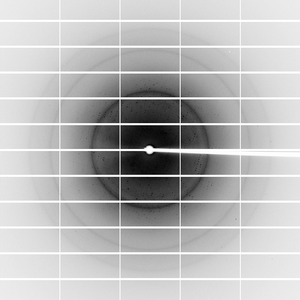

Dataset 172170_2_#####.cbf details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 84.0 |
| Wavelength [Å] | 0.97895 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
