Diffraction project datasets SC.A20848A_4ole

  • Method: MAD
  • Resolution: 2.52 Å
  • Space group: P 42 21 2
Download all images (2.5 GB)

PDB website for 4OLE
PDB validation report for 4OLE

doi:10.18430/M34OLE

Project details

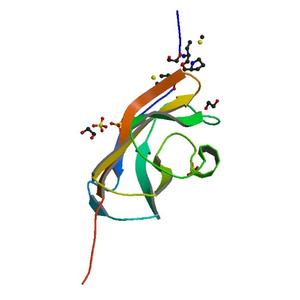

Title Crystal structure of a neighbor of BRCA1 gene 1 (NBR1) from Homo sapiens at 2.52 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.17 / 0.19
Unit cell edges [Å] 111.46 x 111.46 x 230.61
Unit cell angles [°] 90.0, 90.0, 90.0

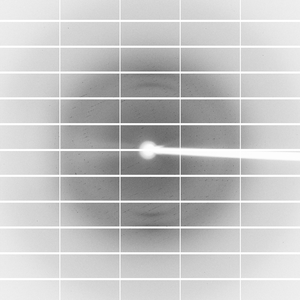

Dataset 200827_1_E1_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 400.0
Oscillation width [°] 0.50
Phi [°] 238.0
Wavelength [Å] 0.97949
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

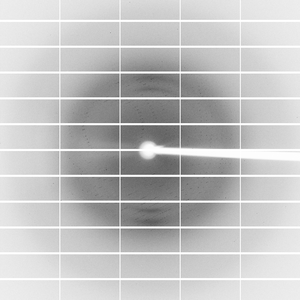

Dataset 200827_1_E2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 400.0
Oscillation width [°] 0.50
Phi [°] 238.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

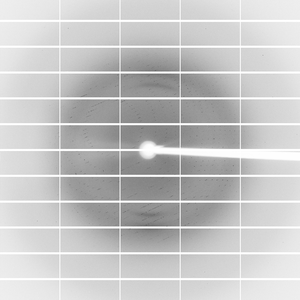

Dataset 200827_2_#####.cbf details

Number of frames 300 (1 - 300)
Distance [mm] 400.0
Oscillation width [°] 0.40
Phi [°] 238.0
Wavelength [Å] 0.97891
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
