Diffraction project datasets RK10657A_2r3b

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: C 2 2 21
Download all images (5.2 GB)

PDB website for 2R3B
PDB validation report for 2R3B

doi:10.18430/M32R3B

Project details

Title CRYSTAL STRUCTURE OF a ribokinase-like superfamily protein (EF1790) FROM ENTEROCOCCUS FAECALIS V583 AT 1.80 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 97.82 x 159.56 x 102.50
Unit cell angles [°] 90.0, 90.0, 90.0

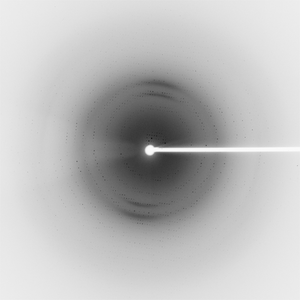

Dataset 55404_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 265.0
Oscillation width [°] 1.00
Phi [°] 13.0
Wavelength [Å] 0.97926
Experiment Date 2007-06-30
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

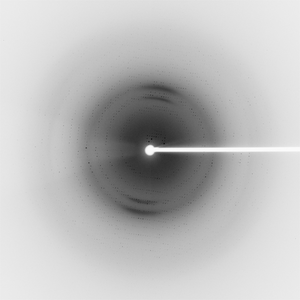

Dataset 55404_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 265.0
Oscillation width [°] 1.00
Phi [°] 13.0
Wavelength [Å] 0.91837
Experiment Date 2007-06-30
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 55404_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 265.0
Oscillation width [°] 1.00
Phi [°] 13.0
Wavelength [Å] 0.97895
Experiment Date 2007-06-30
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
