Diffraction project datasets RK10655A_3pl2

  • Method: Molecular Replacement
  • Resolution: 1.89 Å
  • Space group: P 1
Download all images (4.7 GB)

PDB website for 3PL2

doi:10.18430/M33PL2

Project details

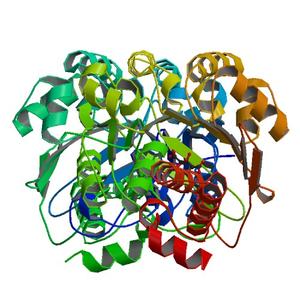

Title Crystal structure of a 5-keto-2-deoxygluconokinase (NCgl0155, Cgl0158) from Corynebacterium glutamicum ATCC 13032 KITASATO at 1.89 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 45.91 x 79.49 x 81.70
Unit cell angles [°] 101.9, 95.7, 92.1

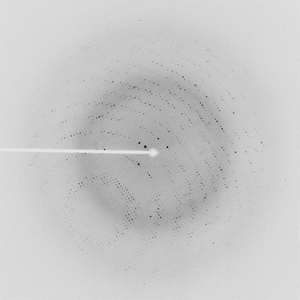

Dataset 96698_1_E1.#### details

Number of frames 180 (1 - 180)
Distance [mm] 235.0
Oscillation width [°] 1.00
Phi [°] 42.0
Wavelength [Å] 0.97967
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)

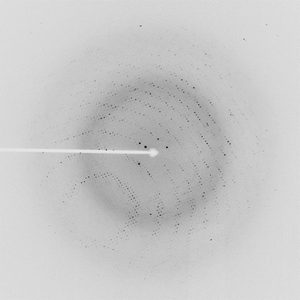

Dataset 96698_1_E2.#### details

Number of frames 180 (1 - 180)
Distance [mm] 235.0
Oscillation width [°] 1.00
Phi [°] 42.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)

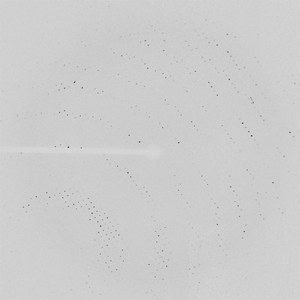

Dataset 96698_2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 425.0
Oscillation width [°] 2.00
Phi [°] 42.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-12
Equipment 23-ID-B at APS (Advanced Photon Source)
