Diffraction project datasets RK10653A_3mbh

  • Method: SAD
  • Resolution: 2.0 Å
  • Space group: P 21 21 21
Download all images (3.3 GB)

PDB website for 3MBH

doi:10.18430/M33MBH

Project details

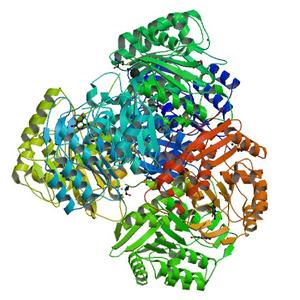

Title Crystal structure of a putative phosphomethylpyrimidine kinase (BT_4458) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 2.00 A resolution (orthorhombic form with pyridoxal)
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 93.72 x 138.37 x 143.54
Unit cell angles [°] 90.0, 90.0, 90.0

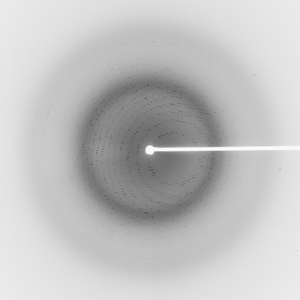

Dataset 131140_1_###.mccd details

Number of frames 225 (1 - 225)
Distance [mm] 250.0
Oscillation width [°] 0.40
Phi [°] 48.0
Wavelength [Å] 0.97911
Experiment Date 2009-07-30
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
