Diffraction project datasets RFA2635A_PPARGC1A_RC2003B_4qk4
- Method: Molecular Replacement
- Resolution: 2.81 Å
- Space group: P 41 21 2
PDB website for 4QK4
PDB validation report for 4QK4
doi:10.18430/M34QK4
Project details
| Title | Crystal structure of human nuclear receptor sf-1 (nr5a1) bound to pip2 at 2.8 a resolution |
| Authors | Blind, R.D., Sablin, E.P., Kuchenbecker, K.M., Chiu, H.J., Deacon, A.M., Das, D., Fletterick, R.J., Ingraham, H.A. |
| Bioentity | None |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 75.00 x 75.00 x 138.63 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

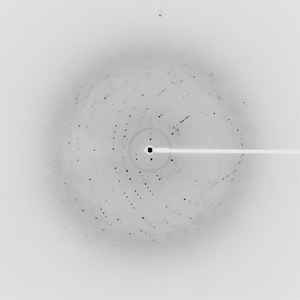

Dataset SDC386_1_#####.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 266.0 |
| Wavelength [Å] | 1.54180 |
| Experiment Date | 2013-09-12 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

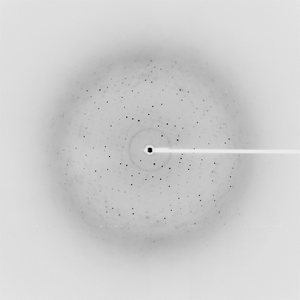

Dataset SDC386_2_#####.mccd details
| Number of frames | 60 (1 - 60) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 356.0 |
| Wavelength [Å] | 1.54180 |
| Experiment Date | 2013-09-14 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
