Diffraction project datasets RF2209A_3soo

  • Method: MAD
  • Resolution: 2.73 Å
  • Space group: P 65 2 2
Download all images (6.0 GB)

PDB website for 3SOO
PDB validation report for 3SOO

doi:10.18430/M33SOO

Project details

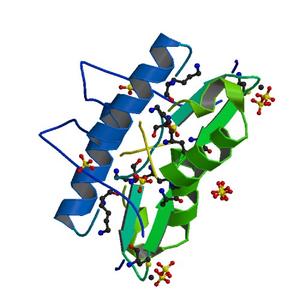

Title Crystal structure of a LINE-1 type transposase domain-containing protein 1 (L1TD1) from HOMO SAPIENS at 2.73 A resolution
Authors Joint Center for Structural Genomics (JCSG), Partnership for Stem Cell Biology (STEMCELL)
Bioentity None
R / Rfree 0.23 / 0.26
Unit cell edges [Å] 69.14 x 69.14 x 292.27
Unit cell angles [°] 90.0, 90.0, 120.0

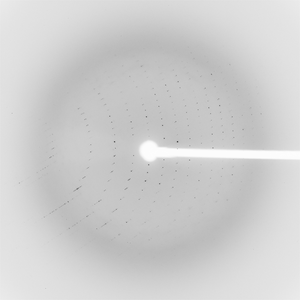

Dataset 166551_1_E1_####.mccd details

Number of frames 121 (1 - 121)
Distance [mm] 400.0
Oscillation width [°] 0.50
Phi [°] 285.0
Wavelength [Å] 0.97932
Experiment Date 2011-04-21
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

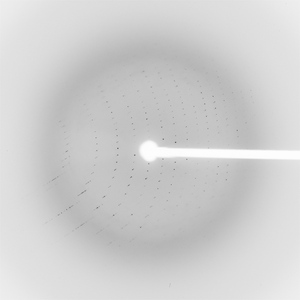

Dataset 166551_1_E2_####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 400.0
Oscillation width [°] 0.50
Phi [°] 285.0
Wavelength [Å] 0.91162
Experiment Date 2011-04-21
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

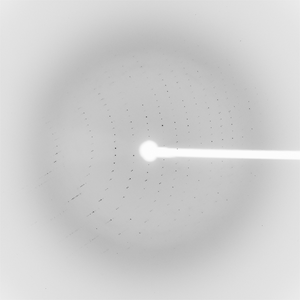

Dataset 166551_2_####.mccd details

Number of frames 150 (1 - 150)
Distance [mm] 400.0
Oscillation width [°] 0.50
Phi [°] 285.0
Wavelength [Å] 0.97907
Experiment Date 2011-04-21
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
