Diffraction project datasets RF20609A_3s01
Project details
| Title |

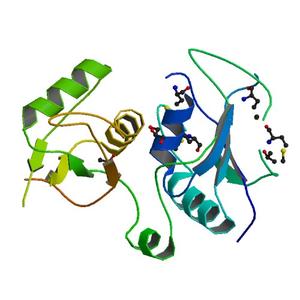

Crystal structure of a Heterogeneous nuclear ribonucleoprotein L (Hnrpl) from Mus musculus at 2.15 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG), Partnership for Stem Cell Biology (STEMCELL), Partnership for T-Cell Biology (TCELL) |
| Bioentity |
None |
| R / Rfree |
0.16 / 0.21 |
| Unit cell edges [Å] |
48.67 x
37.96 x
57.95
|
| Unit cell angles [°] |
90.0,
105.4,
90.0
|

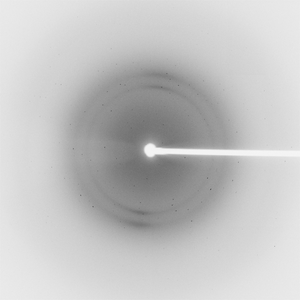

Dataset 165065_1_E1_####.mccd details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
53.0 |
| Wavelength [Å] |
0.97938 |
| Experiment Date |
2011-03-10 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

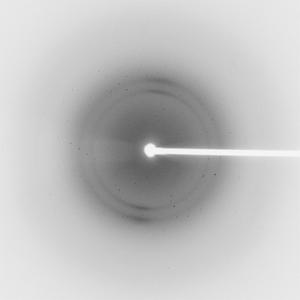

Dataset 165065_1_E2_####.mccd details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
53.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2011-03-10 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 165065_2_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
53.0 |
| Wavelength [Å] |
0.97907 |
| Experiment Date |
2011-03-10 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

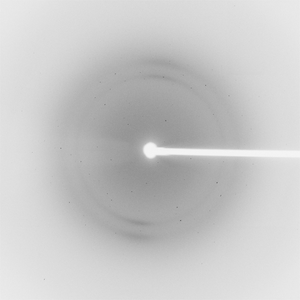

Dataset 165065_3_####.mccd details
| Number of frames |
720 (1 - 720) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
53.0 |
| Wavelength [Å] |
0.97907 |
| Experiment Date |
2011-03-10 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
