Diffraction project datasets RF20603A_DAX1_RC2754B_LRH1_4rwv

  • Method: Molecular Replacement
  • Resolution: 1.86 Å
  • Space group: C 1 2 1
Download all images (4.4 GB)

PDB website for 4RWV

doi:10.18430/M34RWV

Project details

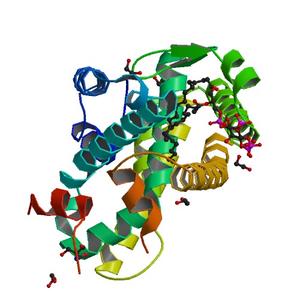

Title Crystal structure of PIP3 bound human nuclear receptor LRH-1 (Liver Receptor Homolog 1, NR5A2) in complex with a co-regulator DAX-1 (NR0B1) peptide at 1.86 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG), Partnership for Stem Cell Biology
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 71.62 x 50.19 x 93.61
Unit cell angles [°] 90.0, 109.2, 90.0

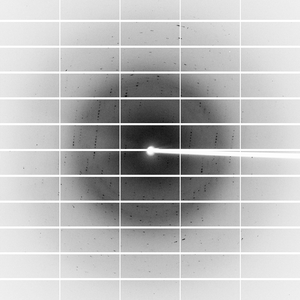

Dataset SDC344_1_#####.cbf details

Number of frames 800 (1 - 800)
Distance [mm] 340.0
Oscillation width [°] 0.30
Wavelength [Å] 1.00000
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

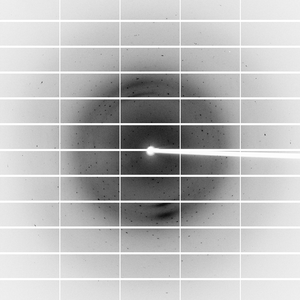

Dataset SDC344_2_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 340.0
Oscillation width [°] 0.30
Phi [°] 240.0
Wavelength [Å] 1.00000
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

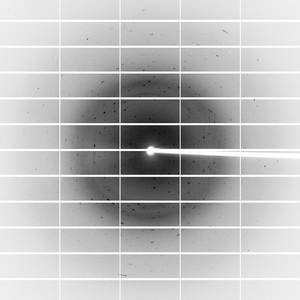

Dataset SDC344_3_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 340.0
Oscillation width [°] 0.30
Phi [°] 300.0
Wavelength [Å] 1.00000
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
