Diffraction project datasets RF.A4044B.DLX5_4rdu

  • Method: Molecular Replacement
  • Resolution: 1.85 Å
  • Space group: P 1
Download all images (5.3 GB)

PDB website for 4RDU

doi:10.18430/M34RDU

Project details

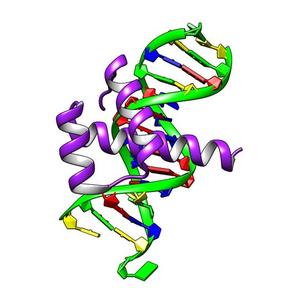

Title Crystal structure of a distal-less homeobox protein 5 (Dlx5) from Homo sapiens at 1.85 A resolution
Authors Joint Center for Structural Genomics (JCSG), Partnership for Stem Cell Biology (STEMCELL)
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 34.18 x 42.91 x 56.10
Unit cell angles [°] 84.1, 77.3, 67.1

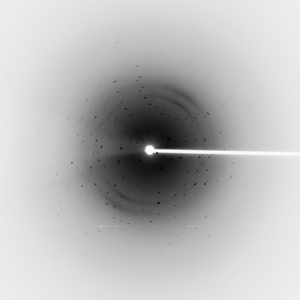

Dataset 207064_1_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Wavelength [Å] 1.00000
Experiment Date 2014-07-24
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

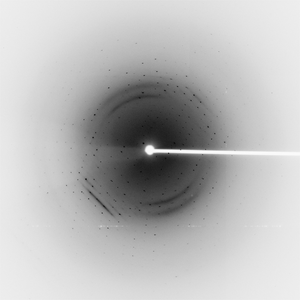

Dataset 207064_2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 90.0
Wavelength [Å] 1.00000
Experiment Date 2014-07-24
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
