Diffraction project datasets RC2003B_RFA2635A_PPARGC1A_4qjr
- Method: Molecular Replacement
- Resolution: 2.4 Å
- Space group: P 41 21 2
PDB website for 4QJR
PDB validation report for 4QJR
doi:10.18430/M34QJR
Project details

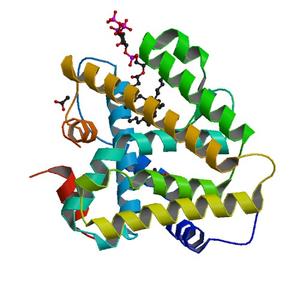

| Title | Crystal structure of human nuclear receptor sf-1 (nr5a1) bound to its hormone pip3 at 2.4 a resolution |
| Authors | Blind, R.D., Sablin, E.P., Kuchenbecker, K.M., Chiu, H.J., Deacon, A.M., Das, D., Fletterick, R.J., Ingraham, H.A. |
| Bioentity | None |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 74.85 x 74.85 x 139.63 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

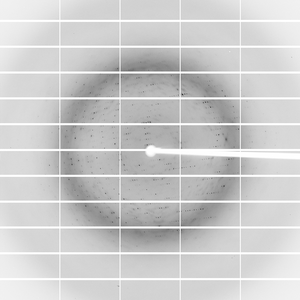

Dataset SDC334_1_#####.cbf details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 410.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 291.0 |
| Wavelength [Å] | 1.00000 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

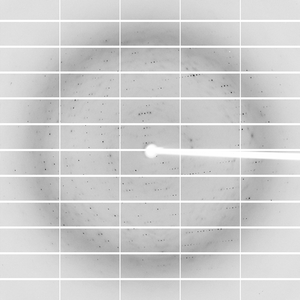

Dataset SDC334_2_#####.cbf details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 550.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 291.0 |
| Wavelength [Å] | 1.00000 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

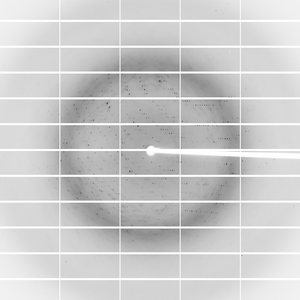

Dataset SDC334_3_#####.cbf details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 410.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 351.0 |
| Wavelength [Å] | 1.00000 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

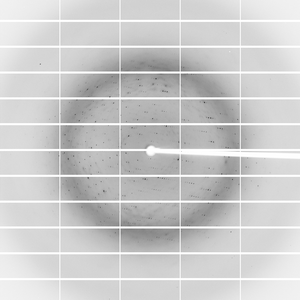

Dataset SDC334_4_#####.cbf details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 410.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 396.0 |
| Wavelength [Å] | 1.00000 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
