Diffraction project datasets PsaeA_17938_a_B2-ADP_7u35
- Resolution: 1.95 Å
- Space group: P 1 21 1
PDB website for 7U35
PDB validation report for 7U35
doi:10.18430/M37U35
Project details

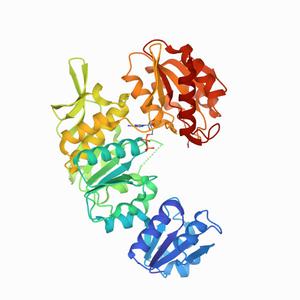

| Title | Crystal Structure of UDP-N-acetylmuramoylalanine--D-glutamate ligase (MurD) from Pseudomonas aeruginosa PAO1 in complex with ADP |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 68.19 x 131.18 x 79.54 |
| Unit cell angles [°] | 90.0, 106.9, 90.0 |

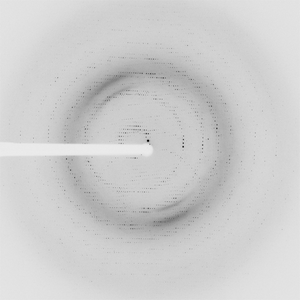

Dataset ecc9-7.### details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 275.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 30.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2022-02-17 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
